5.8 Ghz Wireless Audio Transmitter Receiver, 160 ft Long Range Low Latency Wireless Audio Adapter for Subwoofer/Powered Speaker/Soundbar, RCA or 3.5mm Jack Input/Output
Features of the 5.8G wireless audio kits:
*Easy setup, connects in seconds. Just power the wireless audio kits with 5V DC, then pair them up.
*Works with MAC or PC (or without computer)
*Super-compact size, no batteries required.
*100 ft (30m) range with no droupouts or interference.
*CD quality stereo sound with no reduction in audio quality.
*Plays all music format from any media player
*Replace any RCA or mini-jack (3.5mm) cable
*5.8 GHz Digital audio transmitter and receiver
*5.8G No Delay Audio Transmitter: Wireless Transmitter-Receiver is designed with metal case, drop-proof and collision-proof, RCA and 3.5mm connectors provide more compatibility, which can easily connect to TV, DVD and transmit audio wirelessly to active stereo, soundbar and so on.
*Sampling rate: 192kHz, 24 bit HiFi quality
*260ft Low Latency Syncronization.Designed with anti-interference technology, the transmission distance can reach up to 260ft(80m, no obstacle) and minimum 98ft(30m) for indoor use, enjoy lower than 25ms lantency low noise audio.
*Remove Cable between Audio Devices, If you are using home speakers or backyard speakers to enjoy music, and you don't want to have a lot of wires to connect, this wireless audio transmitter receiver can help you to solve this trouble, realize the connection between subwoofer, CD player MP3,speakers wirelessly.
Specifications of the Low Latency 5.8G audio transmitter and receiver.
Receiver specification:
| Parameter | Min | Type | Max |
| Supply Voltage | 3.5 Volt | 5.0 Volt | 5.5 Volt |
| Operation Current(VBUS=VBAT=3.8V) | 45 mA | 50 mA | 55 mA |
| Audio Sample Rate | | 48 KHz | |
| Audio Channels | | 2 | |
| Audio Input Type (1) | | Analog | |
| Audio Input Type (2) | | USB2.0 (Full Speed) Isochronous mode | |
| Audio Input Dynamic Range | | | 1400 mV (p-p) |
| Audio Frequency Response (-3 dB) | 20 Hz | | 22000 Hz |
| Operating Frequency | 2403 MHz | | 2479 Mhz |
| RF-channels | | 77 | |
| channel spacing | | 1 MHz | |
| Air Data Rate | | 2 Mbps | |
| Modulation | | GFSK | |
| Radiated Power | | | +3dBm |
| Operating Range | | 20 Meters / light of sight | |
Transmitter specification:
| Parameter | Min | Type | Max |
| Supply Voltage | | 5.0 Volt | 5.5 Volt |
| Operation Current(VBUS=VBAT=3.8V) | 45 mA | 50 mA | 55 mA |
| A/D Resoluton | | 10Bits | |
| 3d BVoice BW | 60 Hz | | 6500Hz |
| Audio THD + N(0dB@1Khz) | | 0.1% | 0.5% |
| Audio ouput SNR | 55dB | 62dB | |
| Audio Resolution | | 16 Bit | |
| Audio Sample Rate | | 48 KHz | |
| Audio Latency | | 32mS | |
| Audio data compression | | yes | |
| Audio Channels | | 1 | |
| L/R Channel Separation | 55dB | 62dB | |
| Audio Output Band (with 32 ohmLoading) | 20Hz | | 22000 HZ |
| Audio output Range | | | 1400 mV(p-p) |
| Operating Frequency | 2403 MHz | | 2479 MHz |
| RF channels | | 77 | |
| RX Sensitivity | | - 85 dBm | |
| Channel Spacing | | 1 MHz | |
| Air Data rate | | 2 Mbps | |
| Modulation | | GFSK | |
| Radiated Power | | | +3dBm |
| Operating Range | | 20 Meters / light of sight |
|

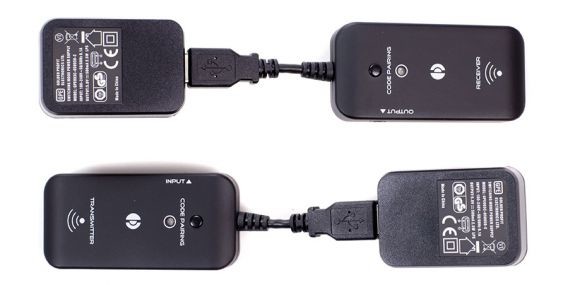

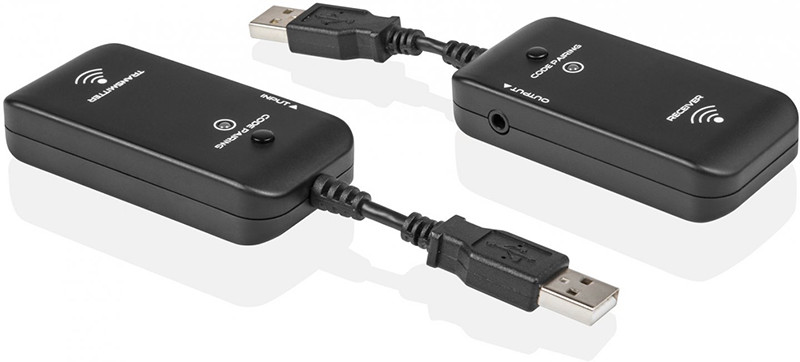

Pictures of the full range stereo Streaming Audio Adapter
